DIY Sasa Cokic RIAA (3)

Some images of the FET-based prototype and innards.. This is a one chassis built and the powersupply has less ripple than the valve-regulated powersupply.

One chassis due to minimalistic FET-regulated power supply..

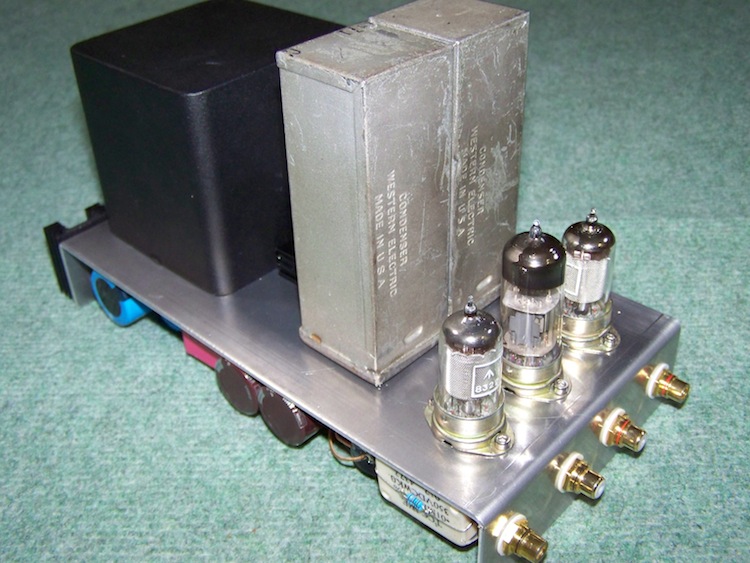

Power transformer and coupling capacitors on top.

6N6 output stage and shielded EF86 input stage.

Under the hood, very compact built.

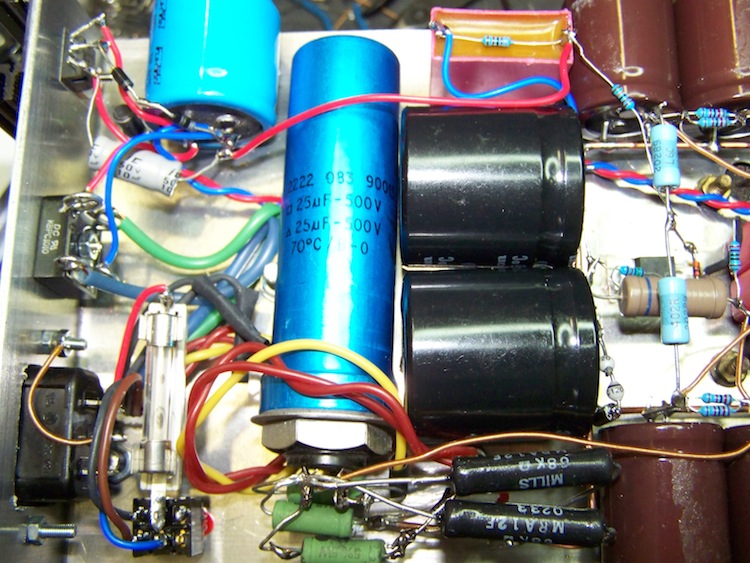

Close-up of FET=regulated powersupply.

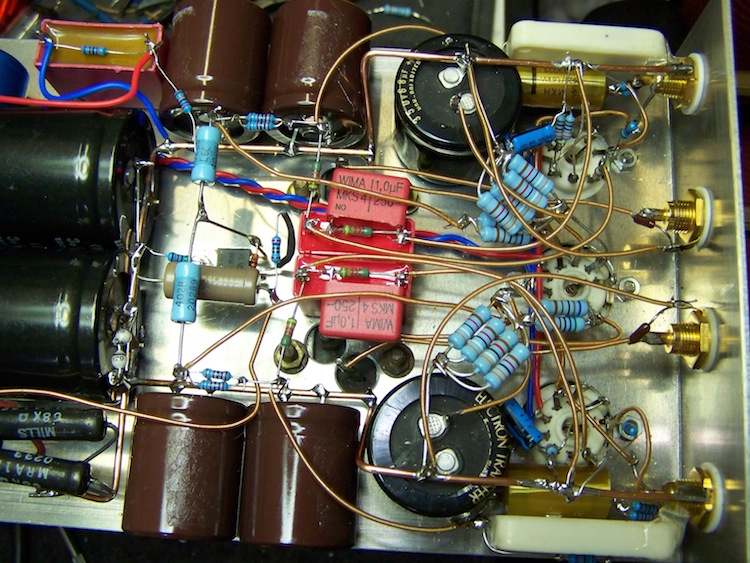

Close-up of RIAA section.
